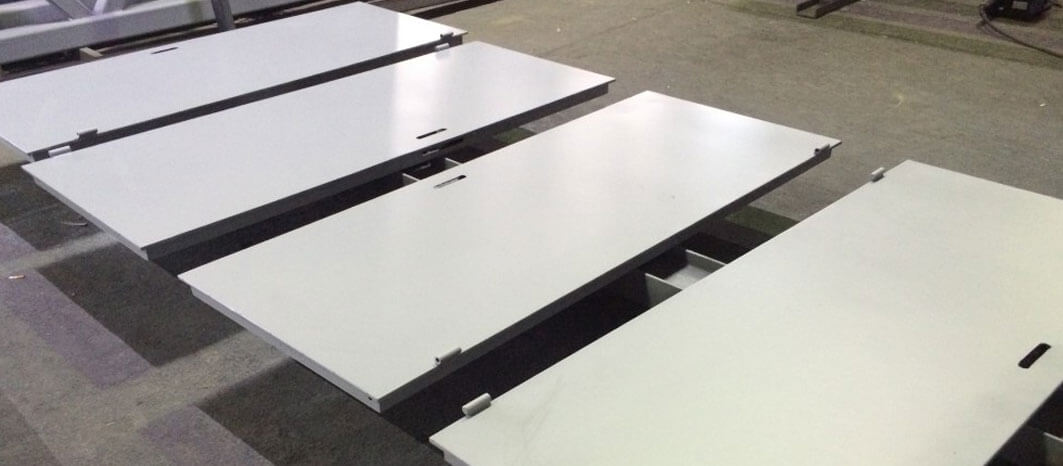

Hastelloy C22 Sheets / Plates Stockist, Supplier

Hastelloy Alloy C22 Sheets, Hastelloy C22 Plates, Hastelloy C22 Sheets and Plates Stockist, Alloy C22 Sheets & Plates, Hastelloy UNS N06022 Sheets, 2.4602 Plates, Hastelloy C22 HR Sheets, Gr C22 Hastelloy Cold Rolled Plates, Nickel Alloy C22 Sheets, Hastelloy Grade C22 Sheets Supplier in Mumbai, India.

Nexus Stainless LLP is a well-known name in the industry of manufacturing and Supplying of Hastelloy C-22 Sheets/ Plates. We at Nexus Stainless LLP are involved in sourcing High caliber UNS N06022 Hastelloy C-22 Sheets that are suitable for applications in a variety of industries. The ASTM B575 Hastelloy C-22 sheets we produce offers outstanding resistance against reducing media and oxidizing media. The Hastelloy C-22 sheets also offer higher corrosion resistance. We at Nexus Stainless LLP are involved in producing only the best quality of the ASTM B575 Hastelloy C-22 plates. Hence, we conduct several quality tests on our products before delivery to the customers. These tests are conducted to check every possible problem in our final outputs. Some of the tests that we conduct are Mechanical Testing Such as Tensile of Area, Positive Material Identification – PMI Testing, Chemical Analysis – Spectra Analysis, Micro and Macro Test, Inter-granular Corrosion (IGC) Test.


ASTM B575 C22 Hastelloy Sheets, ASME SB 575 Hastelloy Alloy C22 Plates, Hastelloy Grade C22 Sheets / Plates at Best Price, Nickel Alloy C22 #8 Finish Plates, 2B Finish Hastelloy Alloy C22 Sheets, Alloy C22 Hot Rolled Plates, C22 Hastelloy CR Sheets, Hastelloy Alloy C22 Industrial Sheets and Plates Exporter in India.

The UNS N06022 Hastelloy C-22 plates contain a blend of nickel, chromium, molybdenum, and tungsten. The ASTM B575 Hastelloy C-22 plates offer enhanced resistance to pitting and stress corrosion. These sheets also offer optimum resistance towards environments in which reducing and oxidizing conditions are found. The chromium content in the Hastelloy C-22 Sheets help to the greater oxidation resistance. The Nickel helps the sheets to have more resistance against wet chlorine and mixtures containing nitric acid. During fabrication, instead of enough ductility, the ASTM B575 Hastelloy C-22 plates might require intermediate annealing due to work hardening. The plates should be forged at temperatures between 1750-2050° F and then rapid cooling might be required. We at Nexus Stainless LLP also provide certain documentation and certificates with our products. The certificates assure the quality of UNS N06022 Hastelloy C-22 sheets that we provide. Some of the documents that we provide include Fumigation Certificates, Raw Material Test Reports, Material Traceability Records, Certificate of Origin legalized/attested by Chamber of Commerce or Embassy, etc are some of the certificates we provide.

Applications of the Hastelloy C-22 plates and sheets can be found in Cellophane manufacturing, Pesticide production, Incineration scrubber systems and Chemical process industry in equipment like flue gas scrubbers, and chlorination systems.

Hastelloy C22 Sheets / Plates Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS EN
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W

Standard Specification For Hastelloy C22 Sheets and Plates

Specifications : ASTM B575 / ASME SB575

Dimensions : ASTM, ASME, and API

Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Thickness : 4mm-100mm

Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Surface Finish : 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc

Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.


Chemical / Mechanical Properties

Hastelloy C22 Plates & Sheets Chemical Composition

Grade C Mn Si P S Cr Mo Ni W
Hastelloy C22 0.010 max 0.50 max 0.08 max 0.02 max 0.02 max 20 - 22.5 12.5 - 14.5 Bal 2.5 - 3.5

Hastelloy Alloy C22 Plates / Sheets Mechanical Properties

Available Types of C22 Hastelloy Sheets and Plates

Hastelloy Alloy C22 Sheets

Hastelloy C22 Sheets | Alloy C22 Sheets | Hastelloy Grade C22 HR Sheet | Nickel Alloy C22 Cold Rolled Sheet | C22 Alloy Hot Rolled Sheets | UNS N06022 Sheets | Alloy 2.4602 Sheets | C22 Hastelloy CR Sheets | Hastelloy Alloy C22 2D Finish Sheets | C22 Hastelloy BA Finish Sheets | Hastelloy Alloy C22 Sheets | Hastelloy Gr C22 Industrial Sheets | ASTM B575 Alloy C22 Sheets | ASME SB575 Hastelloy C22 Sheet.

Hastelloy Alloy C22 Sheets
Hastelloy Alloy C22 Plates

Hastelloy Alloy C22 Plates

Hastelloy C22 Plates | Alloy C22 Plates | Hastelloy Gr C22 HR Plate | Alloy C22 Cold Rolled Plate | C22 Alloy Hot Rolled Plates | UNS N06022 Plates | Hastelloy DIN 2.4602 Plates | C22 Hastelloy CR Plates | Nickel Alloy C22 Plates | Hastelloy Alloy C22 2D Finish Plates | Hastelloy Alloy C22 Plates | C22 Hastelloy BA Finish Plates | Hastelloy Grade C22 Industrial Plates | ASTM B575 Alloy C22 Plates | ASME SB575 Hastelloy C22 Plate.
