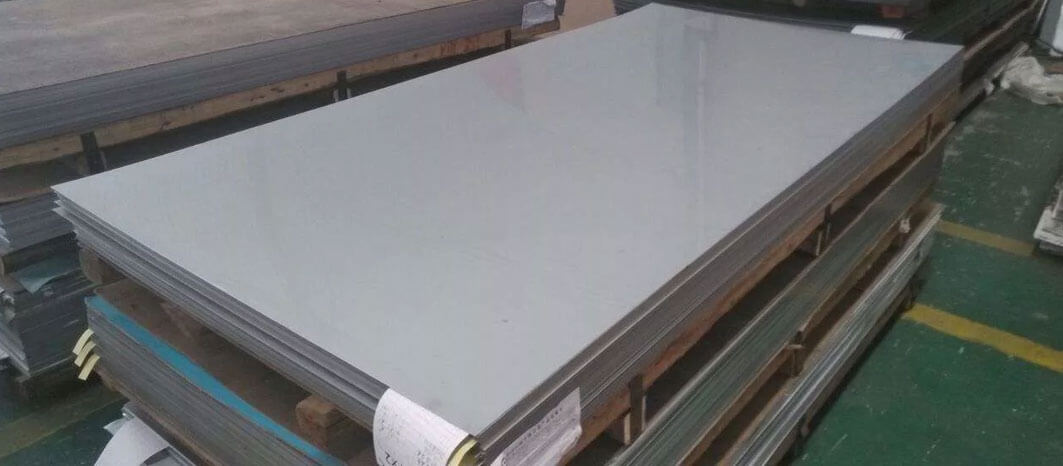

Stainless Steel 316L Sheets / Plates Stockist, Supplier

SS UNS S31603 Sheets, Stainless Steel Grade 316L HR Sheets, Stainless Steel Gr 316L Plates, SS SUS 316L Sheets & Plates, 316L Stainless Steel Sheet Price List, 316L Stainless Steel Sheet, 316L SS Cold Rolled Plates, SS TP316L Sheets and Plates Stockist, DIN 1.4435 Plates, SS 316L Sheets, Stainless Steel 316L Jindal Sheets, Stainless Steel 316L Sheets Supplier in Mumbai, India.

We at Nexus Stainless LLP are involved in producing high-quality Stainless Steel 316L Sheets/Plates that have found applications in various industries. Our team of experts is sourcing the SS 316L sheets of international standards to keep abreast of the global markets. SS UNS S31603 plates have particularly higher resistance to pitting and crevice corrosion in chloride environments. We try to meet our customer’s demands and needs with regards to shape, size, dimensions of the Stainless Steel 316L Sheets at Nexus Stainless LLP using modern and best technologies for production. We also take custom orders from the sheets. SS UNS S31603 alloy plates are ideally suited for applications requiring corrosion resistance superior to Type 304 and have good elevated temperature strength.

The Stainless Steel 316L Sheets has Thickness of 0.3MM to 100MM.
For a variety of applications, 316L stainless steel sheet is most commonly used in the food and dairy, textile, chemical processing, pharmaceutical, and bioprocessing industries.

ASME SA 240 SS 316L Plates, 316L Stainless Steel Sheet Price, 316L Stainless Steel CR Sheets, 2B Finish SS 316L Sheets, ASTM A240 TP316L Stainless Steel Sheets, 316L Stainless Steel Sheets, Stainless Steel Grade 316L Jindal Make Plates, SS 316L Hot Rolled Plates, SS 316L #8 Finish Plates, Stainless Steel 316L Sheet, Austenitic Stainless Steel Gr 316L Sheets / Plates at Best Price, SS 316L Chequered Plates, SS 316L Industrial Sheets and Plates Exporter in India.

SS 316L Plates and Sheets are the low carbon version of the Grade 316 sheets. These SS UNS S31603 plates have reduced grain boundary precipitation and therefore are extensively used in heavy gauge welded components (over about 6mm). The austenitic structure of the SS 316L grade sheets offer excellent toughness, even down to cryogenic temperatures. The SS 316 grade sheets are magnetic in nature and they cannot be hardened by heat treatment. The microstructure of the SS UNS S31603 plates is derived from the addition of Nickel, Manganese, and Nitrogen. These sheets perform very well in high-temperature conditions. The SS 316L sheets have the useful property of being able to be work-hardened to high strength levels whilst retaining a useful level of ductility and toughness. There is no significant difference in the price of 316 and 316L and compared to chromium-nickel austenitic stainless steel, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures.

SS UNS S31603 plates are used in various industries. Food preparation equipment, particularly in chloride environments, use SS 316L sheets. These sheets and plates also have a lot of applications in marine and architectural industries. Rubber, plastics, pulp & paper machinery. Pollution control equipment, Boat fittings, valve and pump trim, Heat exchangers, Pharmaceutical and textile industries are some of the other industries where SS 316L plates are used. We at Nexus Stainless LLP also provide Standard certificates like EN 10204 3.1 and additional requirements like. NACE MR 01075. FERRITE CONTENT as per norms if requested by clients.

Stainless Steel 316L Sheets / Plates Equivalent Grades

Grade UNS DIN JIS EN AFNOR BS
SS 316L S31603 1.4404 / 1.4435 SUS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 Z3CND17‐11‐02 / Z3CND18‐14‐03 316S11 / 316S13

Standard Specification For Stainless Steel 316L Sheets and Plates

Specifications : ASTM A240 / ASME SA240

Dimensions : ASTM, ASME, and API

Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Thickness : 4mm-100mm

Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Surface Finish : 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc

Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.


Chemical / Mechanical Properties

Stainless Steel 316L Plates & Sheets Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 1.0 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.89 min

SS 316L Plates / Sheets Mechanical Properties

SS 316L Sheet / Plate Application

ASTM A240 316L Stainless Steel Sheet, Plate Latest Price List

ASTM A240 Stainless steel 316L SS Plate FOB Price: US $2000-3000 / Ton
Hot selling 201 430 series ASTM A240 316L stainless steel plate FOB Price: US $1000-2000 / Ton
304 ASTM A240 TP316L Stainless Steel Plate FOB Price: US $2550-4500 / Metric Ton
ASTM A240 316L stainless steel plate FOB Price: US $399-599 / Ton
ASTM A240 316L stainless steel plate for foodstuff, biology, petroleum, nuclear energy medical equipment FOB Price: US $1200-3500 / Ton
420hc ASTM A240 tp321 a240 480 304 stainless steel plate FOB Price: US $1500-2500 / Ton
Free sample ASTM A240 tp 316L stainless steel plate price FOB Price: US $1000-2800 / Ton
SS Plate 1mm thick ASTM A240 316L stainless steel plate price per kg FOB Price: US $1150-1950 / Ton
ASTM A240 UNS S32750 S32760 SS plate,hot rolled 2000mm width steel plate,ss plate used for construction FOB Price: US $1000-3000 / Ton
flat plate gas grill griddle 316L ASTM A240 316L stainless steel plate FOB Price: US $2045.0 / Ton
ASTM A240 Hot-Rolled SS304 plate/sheet/Coil, 06Cr19Ni10 FOB Price: US $1500-3500 / Ton
Price For ASTM A240 316L Stainless Steel Decorative Plate FOB Price: US $900-1200 / Ton
China supplier interior decoration ASTM A240 316L stainless steel plate FOB Price: US $1200-2800 / Ton
ASTM Aisi 316L 2b stainless steel plate with SGS third party inspection FOB Price: US $1.67-1.7 / Kilogram
Fast Delivery ASTM A240 316L Stainless Steel Plate In Coils FOB Price: US $1000-3000 / Ton
Wholesale ASTM A240 316L stainless steel plate FOB Price: US $1000-5000 / Ton
AISI 316L 2B ASTM A240 316L Stainless Steel Plate,Sheet Steel, 0.5mm Thick Steel Sheet FOB Price: US $1000-3000 / Ton
ASTM A240 Type 316L Stainless Steel Chequered Plate FOB Price: US $1076.92 / Ton
ASTM A240 316L ss stainless steel shim plate FOB Price: US $1500-3200 / Ton
ASTM A240 316L SUS 316L stainless steel plate checkered plate price per kg FOB Price: US $3000.0 / Ton

ASTM A240 316L Stainless Steel Sheet Weight Chart

Supplier of 316L 2b Stainless Steel Sheet and AISI 316L EN 1.4404 Rolling Sheet, Check SA240 316L Clad Plate/ Perforated Sheet standard sizes, dimensions, thickness, weight chart, and tolerances in mm

  Thickness (mm)
0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.5 2.0 3.0
Grade Dimension (mm) Weight (kg/sheet)
316L 1000 x 2000 4.76 6.34 7.93 9.52 11.1 12.7 14.3 15.9 19.0 23.8 31.7 47.6
1219 x 2438 (4’ x 8’) 7.07 9.43 11.8 14.1 16.5 18.9 21.2 23.6 28.3 35.4 47.1 70.7
1250 x 2500 7.43 9.91 12.4 14.9 17.3 19.8 22.3 24.8 29.7 37.2 49.6 74.3
1524 x 3048 (5’ x 10’) 11.1 14.7 18.4 22.1 25.8 29.5 33.2 36.8 44.2 55.3 73.3 110.5
430 1000 x 2000 4.62 6.16 7.70 9.24 10.8 12.3 13.9 15.4 18.5 23.1 30.8 46.2
1219 x 2438 (4’ x 8’) 6.87 9.15 11.4 13.7 16.0 18.3 20.6 22.9 27.5 34.3 45.8 68.7
1250 x 2500 7.22 9.63 12.0 14.4 16.8 19.3 21.7 24.1 28.9 36.1 48.1 72.2

Stainless Steel 316L Sheet Physical Properties

Grade

Density (kg/m3)

Elastic Modulus (GPa)

Mean Coefficient of Thermal Expansion(μm/m/°C)

Thermal Conductivity(W/m.K)

Specific Heat 0-100°C (J/kg.K)

Electrical Resistivity (nΩ.m)

0-100°C

0-315°C

0-538°C

at 100°C

at 500°C

316l

8000

193

15.9

16.2

17.5

16.3

21.5

500

740

316L Stainless Steel Sheet Stock Available

Tisco Stainless Steel 316l sheet SS 316l Perforated sheet Stainless Steel 316l UNS S31635 sheet
A 240 Chequered 316l sheet Aperam Stainless Steel 316l sheet Stainless Steel 316l sheet
A 240 316l sheet SS 316l Embossed sheet Outokumpu SS 316l sheet
SA 240 316l Stainless Steel sheet Bright Hammered Pattern Decorative SS 316l sheet Jindal Stainless Steel 316l sheet
SS DIN 1.4571 sheet ThyssenKrupp Stainless Steel 316l sheet ASTM A240 Stainless Steel 316l sheet
Surface Polishing SS 316l sheet 316l Stainless Steel HR sheet 316l Stainless Steel Chequered sheet
316l Stainless Steel Golden Laser Pattern sheet Super thin-Mirror surface BA ss 316l sheet Super Austenitic SS 316l sheet
ASTM A240 316l sheet JMSS cold rolled ss 316l sheet Cold Rolled No.1 Finish SS 316l sheet
SEW 400 Stainless Steel 316l sheet Hot Rolled Stainless Steel 316l sheet Sales Promotion SS 316l sheet
Cr Stainless Steel 316l sheet SS 316l Mill Test Certificate sheet ASTM A240 316l sheet
Cold rolled, bright annealed 316l sheet Ground Stainless Steel 316l sheet Hot Selling AISI SS 316l sheet
SS 316l Rose Golden sheet Surface coated Stainless Steel 316l sheet Satin finish Stainless Steel 316l sheet
AISI stainless steel 316l armor sheet Satin finish Stainless Steel 316l sheet Mirror Finish SS 316l sheet
SS 316l sheet Gold Brush Finish 316l Stainless Steel CR sheet 316l Stainless Steel 2B sheet
316l Stainless Steel B. Q. Profile sheet Best selling 4'x8' mirror finished ss 316l sheet Decorative hairline inox cold rolled ss 316l sheet
Hair Line Finish SS 316l sheet Laser cutting ss 316l sheet Tisco Supplier 3mm Thickness Stainless Steel 316l sheet
Decorative Stainless Steel 316l sheet Scotch Brite SS 316l sheet Baosteel Stainless Steel 316l sheet
Stainless Steel Cladding 316l sheet Black SS 316l sheet 4mm Thick Bright-pickled Stainless Steel 316l sheet
Cold rolled, heat treated 316l sheet 3mm Cold Rolled AISI SS 316l sheet Mill Supply SS 316l sheet
Grade Prime SS 316l sheet Carpenter Custom 450 Stainless Steel 316l sheet Cut to Size Stainless Steel 316l sheet
Non Magnetic Polishing Stainless Steel 316l sheet ASME SA240 316l sheet 316l Stainless Steel Blank sheet
316l Stainless Steel Perforated sheet Embossed ss 316l sheet Cheap cold rolled ss 316l sheet with best price
Brush finish ss 316l sheet price list SS URANUS B6 316l sheet 2B SUS SS 316l sheet
Food Grade Stainless Steel 316l sheet No. 4 PVC Coated SS 316l sheet SS 316l sheet Blasted Tin-Gold Rose
2mm ASTM SS 316l sheet Stainless Steel Corrugated 316l sheet ASTM B625 316l sheet
Brushed or dull polished Stainless Steel 316l sheet Cold rolled, heat treated, pickled 316l sheet 10K Mirror Finish Surface SS 316l sheet
Gold Etched SS 316l sheet 18 Gauge SS 316l sheet Patterned Stainless Steel 316l sheet
#4 Finish Stainless Steel 316l sheet Patterned Stainless Steel 316l sheet Passenger Elevator Cabin SS 316l sheet

Available Types of 316L SS Sheets and Plates

SS 316L Sheets

Stainless Steel 316L Sheets | SS TP316L Sheets | Stainless Steel 316L HR Sheet | SUS 316L Sheets | 316L Stainless Steel Sheet Suppliers | SS TP316L Cold Rolled Sheet | 316L SS Hot Rolled Sheets | UNS S31603 Sheets | SS 316L Sheet Price In India | 316L Stainless Steel Sheet Manufacturers | SS DIN 1.4435 Sheets | TP316L Stainless Steel CR Sheets | SS 316L 2D Finish Sheets | Gr 316L Stainless Steel BA Finish Sheets | SS 316L jindal Sheets | Stainless Steel 316L Industrial Sheets | ASTM A240 SS 316L Sheets | ASME SA240 Stainless Steel 316L Sheet.

SS 316L Sheets
SS 316L Plates

SS 316L Plates

Stainless Steel 316L Plates | SS TP316L Plates | Stainless Steel 316L HR Plate | SUS 316L Plates | SS TP316L Cold Rolled Plate | 316L SS Hot Rolled Plates | UNS S31603 Plates | SS DIN 1.4404 Plates | TP316L Stainless Steel CR Plates | Stainless Steel 316L Chequered Plates | SS 316L 2D Finish Plates | SS Grade 316L Jindal Plates | 316L Stainless Steel BA Finish Plates | Stainless Steel 316L Industrial Plates | ASTM A240 SS 316L Plates | ASME SA240 Stainless Steel 316L Plate.
