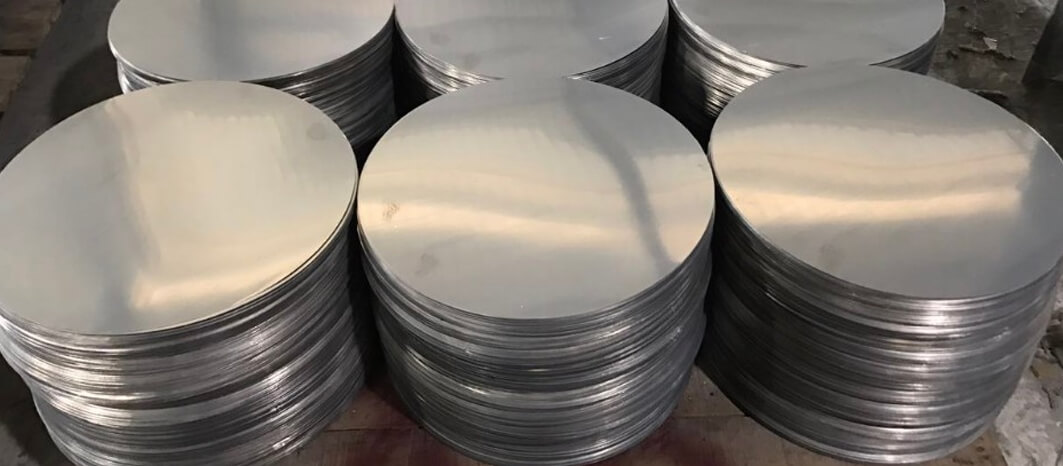

The Stainless Steel 316L Circles are produced with a lower carbon alloy which is Nickel and chromium-based. The UNS S31603 SS Circles also contain tiny additions of Manganese and Nitrogen. The ASTM A276 SS 316L Circles are resistant to sensation (grain boundary carbide precipitation) due to the lesser carbon content in them. The SS 316L circles are austenitic in nature and offer excellent toughness, even down to cryogenic temperatures. At elevated temperatures, the UNS S31603 SS Circles also offer higher creep, stress to rupture and tensile strength. The SS 316L circles are subject to stress corrosion cracking above about 60 °C. At ambient temperatures, the ASTM A276 SS 316L Circles are resistant to potable water with up to about 1000 mg/L chlorides. They also offer excellent welding properties and can be welded by standard fusion and resistance methods, both with and without filler metals.
Applications of the Stainless Steel 316L Circles are widely found in marine environments. They are used in the manufacturing Food preparation equipment particularly in chloride environments. The UNS S31603 SS Circles also have applications in various industries such as Pharmaceuticals and specialty chemical industries.
Standard Specification For Stainless Steel 316L Circles
Specifications : ASTM A240 / ASME SA240
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Thickness : 1 mm To 100 mm
Diameter : Upto 2000 mm
Ring : 3" DIA up to 38" DIA 1500 lbs max
Cutting : Plazma & Machined Cut
Finish : HR, CR, 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Cold Rolled Circle, Small Flat Circle, Industrial Circle, Proof Machined Circle, Perforated Circle, Forged Steel Circles, Cnc Finish Circle, Polished Unique Circle, Hot Rolled Circle.
Chemical / Mechanical Properties
Stainless Steel 316L Circle Chemical Composition
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
SS 316L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
1.0 max |
16.00 - 18.00 |
2.00 - 3.00 |
10.00 - 14.00 |
68.89 min |
SS 316L Circles Mechanical Properties
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
8.0 g/cm3 |
1399 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
